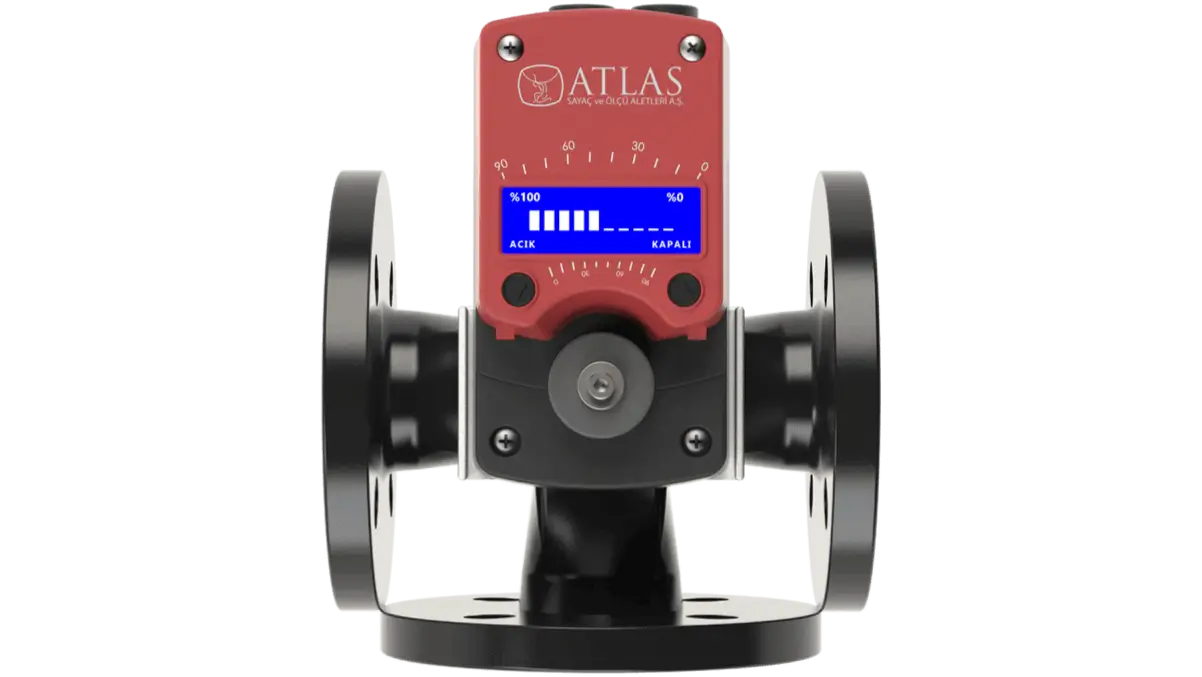

3 Way Valves and Actuators
Key Features
- The body is made from GG25 casting iron
- Motor Shaft connections are Stainless steel
- Full compatibility with Atlas Ecopanel
- Full compatibility with Atlas Actuator
- Ability to work with different brands and models of motor drives and ports compatibility
- 90° rotation angle
- Flanged connection PN6
- Pressure class PN6
- Can be produced from DN40 up to DN200
Optional
- Gasket
- Bolt
- Connection apparatus
Standart
- 3 way valve, 1 Pcs
- User Manual and Mounting Directions

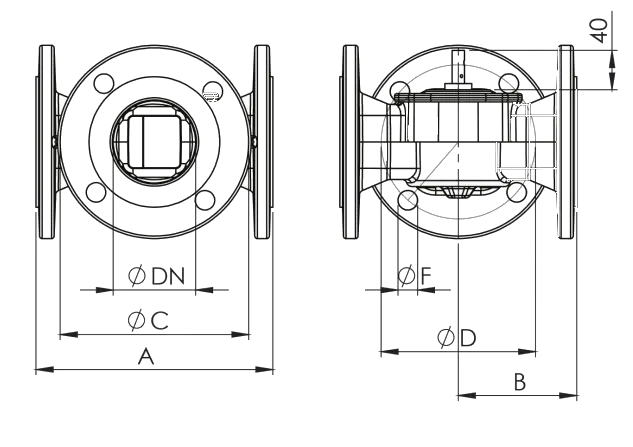

Technical Drawing and Dimensions
Technicial Specifications
Actuator
Model Selection for Three-Way Valve Purchase
- When purchasing a Three-Way Valve, the nominal flow rate in the area where the meter will be used should be considered.
- The model with the most suitable DN (valve inner diameter) diameter for the nominal flow rate should be selected.
Flow Measuring Range
The table below shows the model table associated with DN (valve inner diameter) - flow rate measurement range.
| Type | DN | Nominal Flow Rate (m3/h) | A | B | C | D | F |
|---|---|---|---|---|---|---|---|
| UYV40 | 40 | 25 | 180 | 90 | 130 | 100 | 14 |
| UYV50 | 50 | 40 | 180 | 90 | 140 | 110 | 14 |
| UYV65 | 65 | 65 | 200 | 100 | 160 | 130 | 14 |
| UYV80 | 80 | 100 | 230 | 115 | 190 | 150 | 19 |
| UYV100 | 100 | 160 | 260 | 130 | 210 | 170 | 19 |
