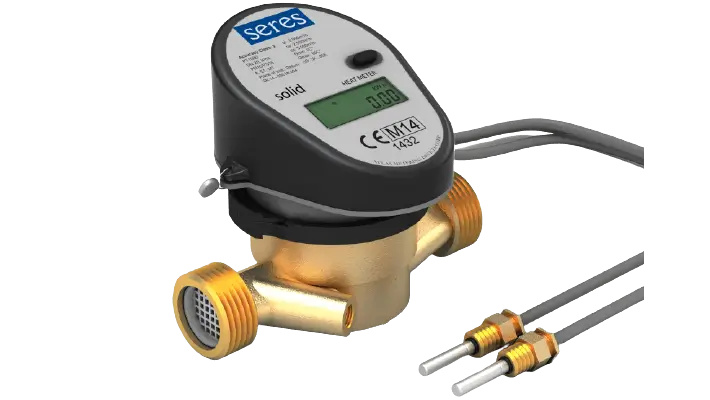

Mechanical Heat Meters Seres
Product Features
- The measurement accuracy rate of SERES SOLID is over metrological standards
- Produced according to the requirements of EN 1434 standards
- Low energy usage provides long-term battery life up to 10 years
- Ultrasonic measurement method gives more accurate results than classical mechanic heat meter measurement.
- Excellent accuracy and linear measurement with platinum sensors
- 350 degree rotatable screen makes SERES SOLID easy to read.
Optionals
| Solid(Standard) | M-bus Communication with cable |
| Solid-RF | wireless RF Communication |
| Solid-Pulse | Pulse Output |
Flowmeter rates
Features
Dimensions
Menus of meter
Pressure Loss Curve
Model Selection in Mechanical Heat Meter Purchase
- When purchasing a mechanical heat meter, the minimum flow rate and the nominal flow rate in the area where the heat meter will be used should be considered.
- The model with the most suitable DN (heat meter inner diameter) diameter for the minimum and nominal flow rate should be selected.
Flow Measurement Range
The table below shows the model table associated with DN (heat meter inner diameter) - flow rate measuring range.
| Model | DN [mm] | Minimum Flow (qi) m3/h | Nominal Flow (qp) m3/h |
|---|---|---|---|
| Seres Solid | 15 | 0,60 / 1,50 | 0,012 / 0,03 |
| Seres Solid | 20 | 2,50 | 0,05 |
| Seres Solid | 25 | 3,50 | 0,07 |
