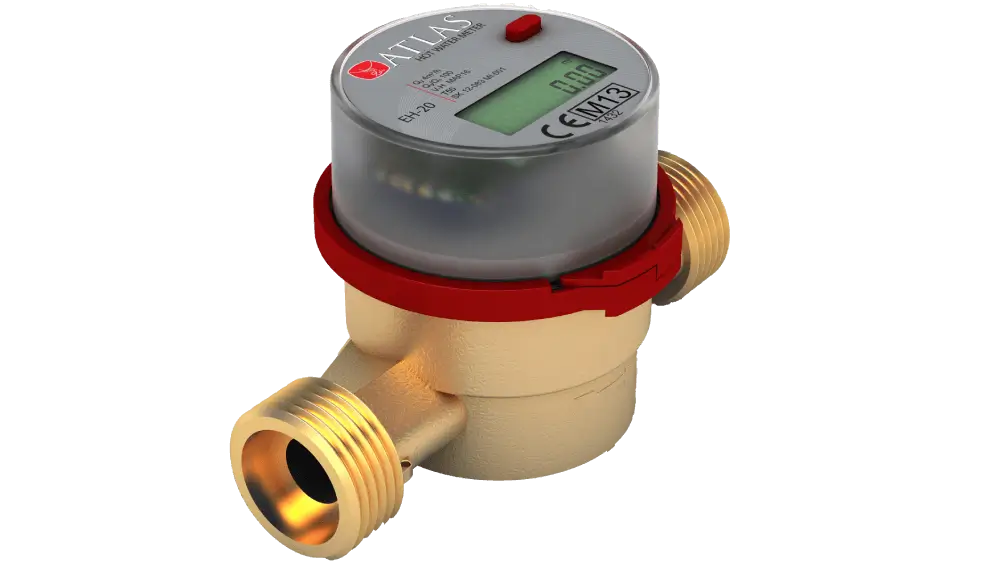

Electronic Water Meter
Key Features
- Produced according to the requirements of EN 14154 standards
- Low energy usage provides long-term battery life up to 10 years
- Measurement system of SJM20 is not affected in magnetic fields so that provides safe scaling results.
- Excellent accuracy and linear measurement with platinum sensors
- EC20/EH20 has M-BUS communication protocol.
- EC20/EH20 has a protection system for preventing foreign interference.
Box Details
Standart
- Water meter, 1 Pcs
- Klingerit gaskets,
2 Pcs - Sensor fitting and gasket Part, 1 Pcs
- User Manual and Mounting Directions
Optional
- Ball sensor valve
- Dirt Filter
- Coupling Sleeve of Sensor
- Meter fitting
Techinical Details
Dimensions
Meter Menu
Single Jet Debimetre
- The product can scale at low flow status
- Flowmeter rates:
- Q1 = 40 L/h
- Q2 = 64 L/h
- Q3 = 4 m3/h
- Q4 = 5 m3/h
- At nominal flow (Qn), Pressure loss (Dp= 250 mbar)
Dimensions
| DN(D) | 20 |
| Length (L)/Height(H)/Width(W) | 130mm/81mm/70mm |
| Lenght of M-BusCable | 1,5 m |
| Weight | 650 gr |
Optionals
| EC20 / EH20 - M-Bus | M-bus Communication with cable |
| EC20 / EH20 - RF | Wireless Communication |
| EC20 / EH20 - Pulse | Pulse Output |
Metrological Features
- Suitable for TS EN 14154 Standards requirements
- Accuracy class is 2
- Security class is IP54
- Maximum applicable pressure (MAP) is 16bar
Communication and Interfaces
- Cabled connection has standard M-Bus interface
- RF communication uses wireless M-Bus interface
- Low energy usage provides long-term battery life up to 10 years
- The last 12 months consumption indexes can be displayed.
