Dynamic Balancing Valves

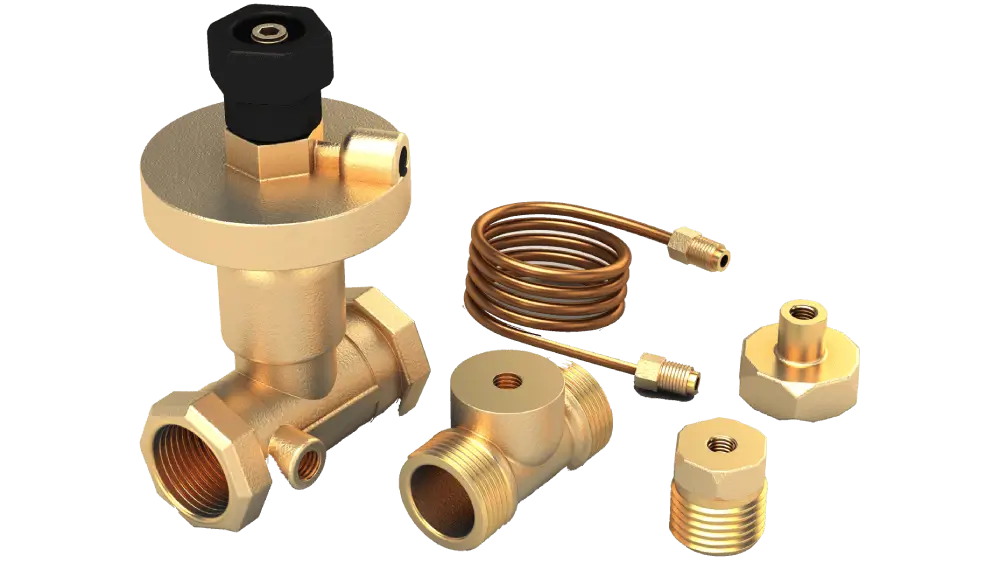

Box Details
Standart
- ATLAS DP (ADP) Valve
- Copper Impulse Connection
- Guide Valve Apparatus
- User Manual
Optional
- Meter fitting
Atlas Differential Pressure Valve
(Brass-Threaded Connection)
| Model Name | Diameter |
|---|---|
| ATLAS ADP-20 | DN20 |
| ATLAS ADP-25 | DN25 |
| ATLAS ADP-32 | DN32 |
| ATLAS ADP-40 | DN40 |
| ATLAS ADP-50 | DN50 |
Atlas Differential Pressure Valve is produced between DN20 and DN100 diameters. DN20-DN50 models are threaded connection, DN65-DN100 models are flanged connections.
Diameter-Pressure
Features
Connection
| Model Name | DN [mm] | Kvs [m3/h] | PN [bar] | Maximum working Pressure Difference[bar] | Maximum Adjustable Pressure Difference[kPa] | Length [mm] | Heigth [mm] | |
|---|---|---|---|---|---|---|---|---|
| ADP 20 | 20 | 1,2 - 1,6 | 16 | 4,5 | 5-25 | 70 | 104 | |
| ADP 25 | 25 | 1,2 - 8,6 | 16 | 4,5 | 5-25 | 120 | 160 | |
| ADP 32 | 32 | 1,3 - 13 | 16 | 4,5 | 5-25 | 180 | 174 | |
| ADP 40 | 40 | 1,2 - 1,6 | 16 | 4,5 | 5-25 | 200 | 220 | |
| ADP 50 | 50 | 2,2 - 39 | 16 | 4,5 | 5-25 | 230 | 240 | |
| ADP 65 | 65 | 2,2 - 58 | 16 | 4,5 | 20 - 80 | 290 | 300 | |
| ADP 80 | 80 | 2,8 - 80 | 16 | 4,5 | 20-80 | 310 | 310 | |
| ADP 100 | 100 | 2,2 - 58 | 16 | 4,5 | 20-80 | 350 | 375 |
